Field System Alarms

Field system alarms can be configured only for simple properties, no array, of the following GMS and PVSS types:

  • GMSBOOL
  • GMSREAL
  • GMSENUM
  • GMSINT (only if based on INT data type)
  • GMSUINT (only if based on UINT data type)
  • GMSINT64
  • GMSUIN64
  • BOOL
  • FLOAT
  • INT
  • UINT
  • LONG
  • ULONG

To define field system alarms, the following can be specified:

Data

Use

Description

Type

Mandatory

FIELDSYSTEM

TableReference

Mandatory

Name of the event table.

NOTE 1: In case of empty string (“TableReference”: “”), the default value is assumed.

NOTE 2: The name specified here must correspond to the name of a data point of type “GmsAlarmTable_Driver” already present in the project. If the specified name does not correspond to a data point in the project, the default (empty string: “”) value is assumed.

NOTE 3: The name specified here can or cannot have the suffix “.AlarmTable”. In the last case, the suffix will be automatically added.

Example

"Alarms": {

    "Valid": true,

    "AlarmsConfiguration": {

        "Type": "FIELDSYSTEM",

        "TableReference": "Alt_BACnetStandard"

    }

}

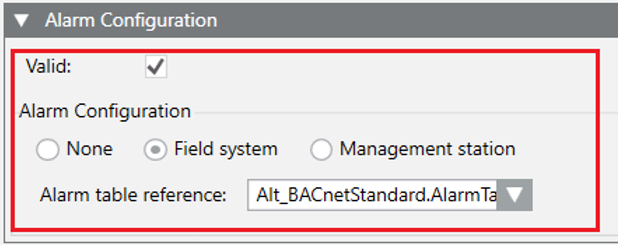

The following image shows the corresponding settings in the Models & Functions tab:
