Enable Proxy for the Application Request Routing (ARR) Cache in IIS

  • Application Request Routing (ARR) is installed on your system.
  1. To open IIS Manager, do any of the following:
  • From Windows Start menu, enter inetmgr in the Search Programs and files field. Press ENTER.
  • Select Control Panel > Administrative Tools > Internet Information Services (IIS) Manager.
  • The IIS Manager window opens.
  1. In the IIS Manager window, double-click Application Request Routing Cache.
  • The Application Request Routing (ARR) Cache page displays.
  1. Click Server Proxy Settings in the Actions pane.

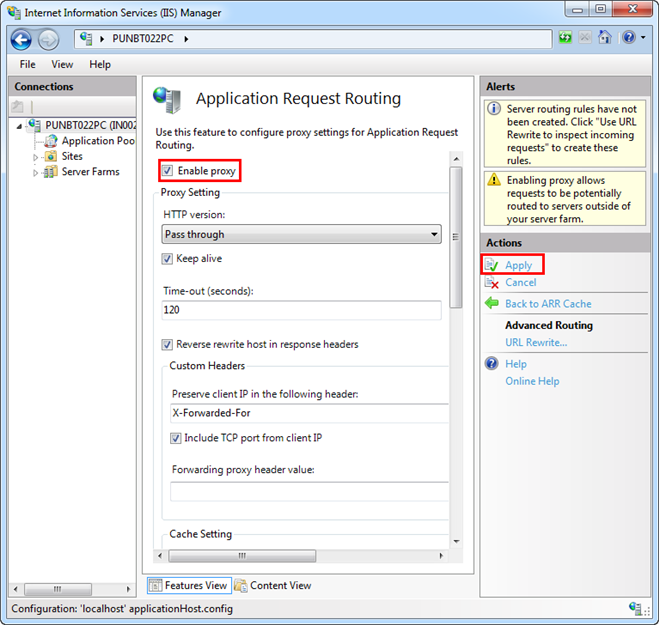

  1. In the ARR page for proxy settings, select the Enable proxy check box.
  1. Click Apply in the Actions pane.
  • The proxy settings that you have just entered are applied and saved.
  1. In the Connections pane of the IIS Manager window, select the root node (http://local host/) and click Restart in the Actions pane to restart IIS.
  1. Now, launch the SMC.
  1. Create website and web application linked to a project.
  1. Browse the website and web application URL and launch the Windows App client.
