User Roles and Configuration Aspects

User Groups and Tasks

Object Model, Function, and Instance Applications

User Role

Tasks

HQ librarian

Creates extensions for:

  • Object Model for the HQ library
  • Function for the HQ library
  • Function for the most important third-party providers

RC librarian

Defines extensions for:

  • Localizing HQ libraries
  • Function for the RC library
  • Function for the most important local third-party providers

Project engineer

System house engineer

Defines extensions for:

  • Function for customized extensions
  • Function for unsupported third-party providers
  • Customizations as per end customers

Commissioning

engineer

Modifies Function for:

  • Project-specific extensions
  • Modifications as per customer wishes

Operator

Defines extensions in the Object Configurator, including:

  • Setting up alarm on the management platform
  • Defining data points for history records
  • Temporarily setting sensors or detectors out of service (Out of scan)

Definition

The following information must be defined in Object Models, Functions, and Objects for operating and monitoring to function properly:

  • View of individual object properties
    • Sequence of object priorities in the Operation and Extended Operation tab
    • Visibility of object properties in the Operation and Extended Operation tab
    • Visibility of object properties in Graphics
    • Visibility of object properties in Configuration
    • Assign icon
  • View of individual object properties in the BACnet Configurator
  • Display object texts
    • Discipline category
    • Search criteria
    • Attribute texts
    • Translations
  • Configuration of the Status and Commands window for the graphic
    • Visibility of object properties in Graphics
  • Alarm configuration
    • From the field system.
    • Created on the management platform
  • Command objects
    • Acknowledge alarm
    • Change of values
  • Symbol selection for a graphics page
    • Drag-and-drop selection
    • Graphic templates
  • Security (rights and privileges)
    • User groups, which can then be used for security settings
  • Recording values
  • Organizing related items

Examples of Configurations to be Created

  • Command objects

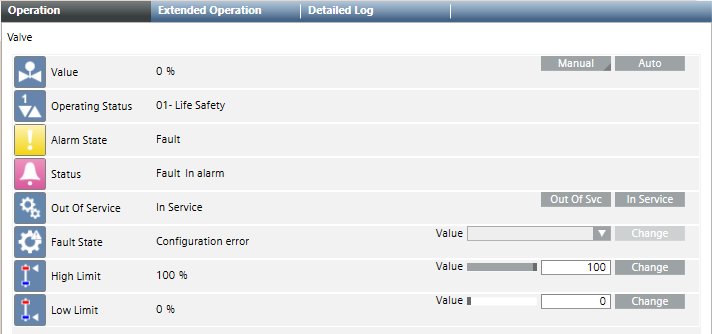

  • Operation in the Operation tab
  • Status and Commands window for the graphic
