TECLA Script

Scenario

You want to migrate TECLA scripts.

The process of migrating the TECLA Scripts to JavaScript™ broadly involves three activities:

  1. Exporting the TECLA Script from SICLIMAT X OS storage
  1. Importing the TECLA Script in Desigo CC
  1. (Optional) Modifying and extending the migrated scripts

For general information on TECLA scripts, see SICLIMAT X TECLA Scripts.

Export Repository from SICLIMAT X OS

The process of exporting engineering data from SICLIMAT X OS is a common step during the migration of SICLIMAT X OS to Desigo CC. A routine called the Repository Extraction Tool in SICLIMAT X OS extracts all required information to a structure of folder and files. You can find more information about this tool under SICLIMAT X Export. For the migration of TECLA scripts, there are two essential parts – the TECLA script documents and the data point information in an XML file.

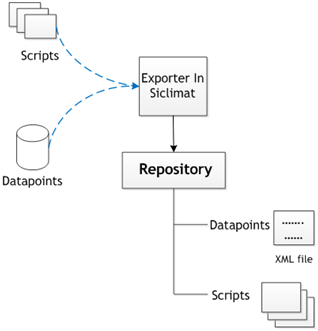

Extraction of Engineering Data from SICLIMAT X OS



Import Scripts into the System

  • System Manager is in Engineering mode.
  • An S7 network exists.
  1. In System Browser, select Management View.
  1. Select Project > System Settings > Conversion Tools > Siclimat Script Migration.

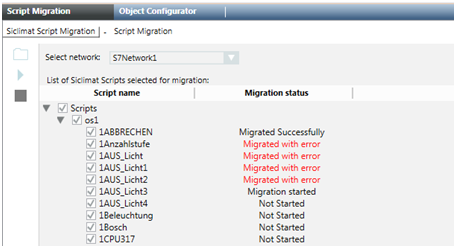

  1. Select the Script Migration tab.
  1. From the Select network drop-down list, select S7Network.
  1. Click Browse .
  1. In the Repository Folder Selector dialog box, select the folder.
  • The scripts are listed.
  1. Select the check boxes of the scripts to migrate.
  1. Click Run .
  • The execution status is updated.
  • The Import summary dialog displays.
  1. Click OK.
  • The data point objects representing the scripts and their content are available in System Browser.

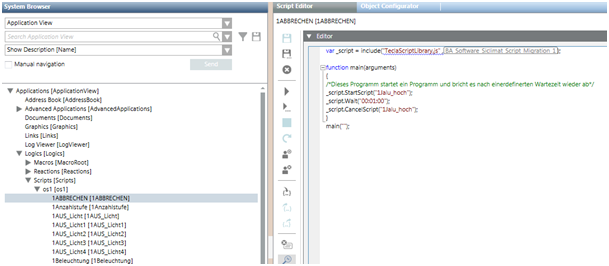

Objects After Migration
